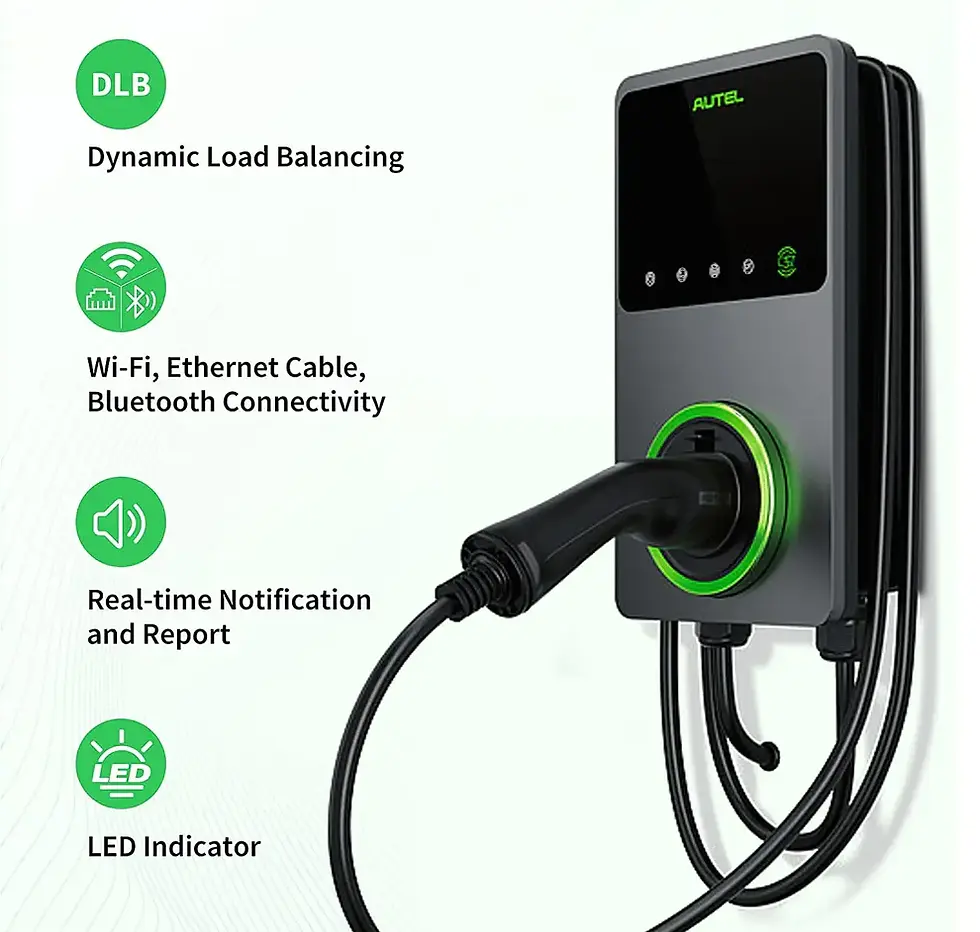

Autel MaxiCharger Wallbox AC W22-C5

The Autel MaxiCharger AC W22-C5 Wallbox is small, smart and easy to use.
 It is a versatile AC charger for homes, businesses and charging station operators.
Autel Charge APP is used to monitor charges, display battery status and manage multiple chargers, directly from your smartphone or computer. It offers remote start, stop, schedule charging, control a smart home charger, track vehicle battery health while charging, and send notifications when charging is complete.
Easy to install and maintain with the modular design (Finish installation within 8 minutes without opening the back panel)

Product Features
Multi-layer Protection Technology
Charger + Cloud BMS + vehicle real-time data analysis for multiple safety pre-warnings
Safe charging mode to prevent overcharging and maintained battery stability
Real-time monitoring of EV battery status to prevent thermal runaway

Intelligent Battery Diagnostic Technology, Longer Battery Life
Increased EV battery life up to 20% by our industry leading AI algorithm for battery test
Protection of EV battery via health charging mode

IP65 Protection, Fits for Extreme Weather
Anti-salt spray, anti-dust and anti-condensation. Failure rate lowered by 80%
Excellent design of the cooling system that makes the temperature at full load operation lower than the industry average by 10°C and the life of the whole set longer for over 8 years
Operating temperature range at -40°C to +55°C

Charging Management with Cloud System and APP
Remote management via Autel Charge
Remote update and diagnosis
Type
wall box
Purpose of use
For charging electric vehicles with alternating current
area of application
Inside & Outside
Input/Output Voltage
 230 V ±15%, single phase
 400 V ±15%, three phase
frequency
50Hz
charging power
22kW
charge mode
IEC 61851-1, mode 3
number of phases
1/3
User Interface Connection
Bluetooth, Wi-Fi, Ethernet
User Authentication
App
Software Update
OCPP 1.6J, App, Web portal
protective mechanisms
Residual current circuit breaker AC 30mA, DC 6mA, protection against overcurrent, overvoltage, undervoltage, charging handle with safety lock
IP and IK Rating
Cable model: IP65; IK08
Socket/shutter model: IP54; IK08
Safety Standards
IEC/EN 61851-1, EN 62311, EN 62479, IEC/EN 62955
Certifications
CE, TUV, TR 25:2016 (ICS 43.120)
Note
A qualified electrician is required for installation, repair or maintenance! Local installation requirements need to be met.
Accesories
available
Wall bracket, 2x screw (M6 x 50), screw (M5 x 12), 2x dowel (8mm), 2x RFID card, 2x cable sealing ring (M16 / M25), waterproof Ethernet cable gland, 2x screwdriver (T25 / T10)
Dimensions
Width: 186mm x Height: 336mm x Depth: 85mm
Weight
3.6kg
